ControlNet-Canny: Optimized for Mobile Deployment

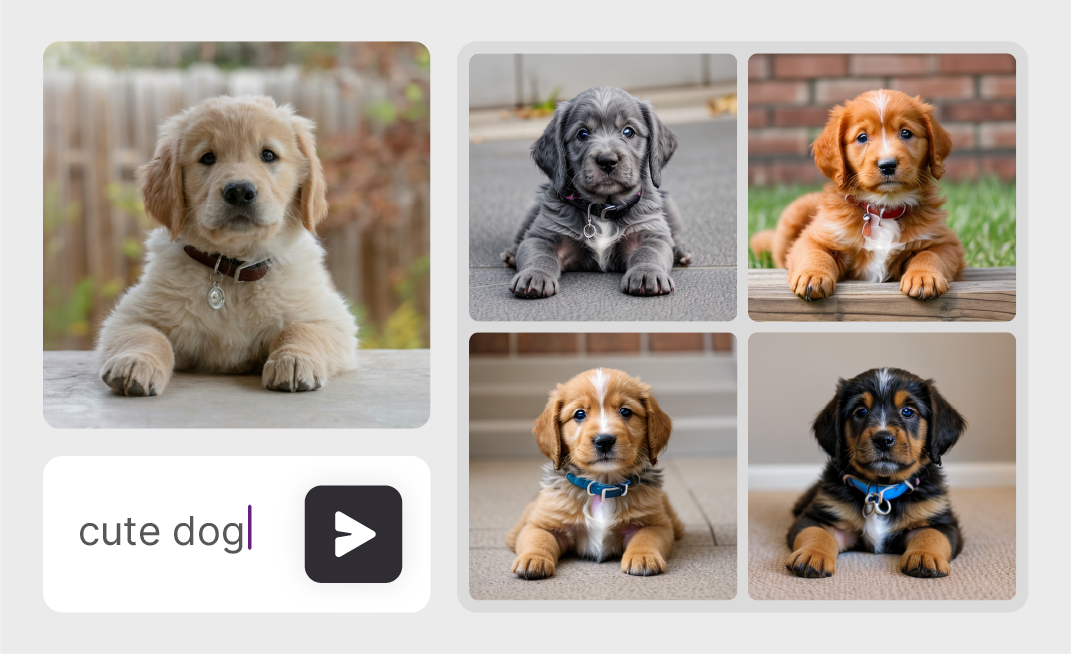

Generating visual arts from text prompt and input guiding image
On-device, high-resolution image synthesis from text and image prompts. ControlNet guides Stable-diffusion with provided input image to generate accurate images from given input prompt.
This model is an implementation of ControlNet-Canny found here.
This repository provides scripts to run ControlNet-Canny on Qualcomm® devices. More details on model performance across various devices, can be found here.
Model Details
- Model Type: Model_use_case.image_generation
- Model Stats:
- Input: Text prompt and input image as a reference
- Conditioning Input: Canny-Edge
- Text Encoder Number of parameters: 340M
- UNet Number of parameters: 865M
- VAE Decoder Number of parameters: 83M
- ControlNet Number of parameters: 361M
- Model size: 1.4GB
Model | Precision | Device | Chipset | Target Runtime | Inference Time (ms) | Peak Memory Range (MB) | Primary Compute Unit | Target Model |
---|---|---|---|---|---|---|---|---|
text_encoder | w8a16 | QCS8550 (Proxy) | Qualcomm® QCS8550 (Proxy) | QNN_CONTEXT_BINARY | 5.37 ms | 0 - 3 MB | NPU | Use Export Script |
text_encoder | w8a16 | QCS9075 (Proxy) | Qualcomm® QCS9075 (Proxy) | QNN_CONTEXT_BINARY | 5.903 ms | 0 - 10 MB | NPU | Use Export Script |
text_encoder | w8a16 | SA8255 (Proxy) | Qualcomm® SA8255P (Proxy) | QNN_CONTEXT_BINARY | 5.395 ms | 0 - 2 MB | NPU | Use Export Script |
text_encoder | w8a16 | SA8650 (Proxy) | Qualcomm® SA8650P (Proxy) | QNN_CONTEXT_BINARY | 5.412 ms | 0 - 2 MB | NPU | Use Export Script |
text_encoder | w8a16 | SA8775P ADP | Qualcomm® SA8775P | QNN_CONTEXT_BINARY | 5.903 ms | 0 - 10 MB | NPU | Use Export Script |
text_encoder | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | QNN_CONTEXT_BINARY | 5.432 ms | 0 - 3 MB | NPU | Use Export Script |
text_encoder | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | PRECOMPILED_QNN_ONNX | 5.743 ms | 0 - 3 MB | NPU | Use Export Script |
text_encoder | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | QNN_CONTEXT_BINARY | 3.872 ms | 0 - 18 MB | NPU | Use Export Script |
text_encoder | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | PRECOMPILED_QNN_ONNX | 4.067 ms | 0 - 20 MB | NPU | Use Export Script |
text_encoder | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | QNN_CONTEXT_BINARY | 3.481 ms | 0 - 14 MB | NPU | Use Export Script |
text_encoder | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | PRECOMPILED_QNN_ONNX | 3.255 ms | 0 - 13 MB | NPU | Use Export Script |
text_encoder | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | QNN_CONTEXT_BINARY | 5.792 ms | 1 - 1 MB | NPU | Use Export Script |
text_encoder | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | PRECOMPILED_QNN_ONNX | 5.958 ms | 158 - 158 MB | NPU | Use Export Script |
unet | w8a16 | QCS8550 (Proxy) | Qualcomm® QCS8550 (Proxy) | QNN_CONTEXT_BINARY | 110.879 ms | 13 - 15 MB | NPU | Use Export Script |
unet | w8a16 | QCS9075 (Proxy) | Qualcomm® QCS9075 (Proxy) | QNN_CONTEXT_BINARY | 107.956 ms | 6 - 13 MB | NPU | Use Export Script |
unet | w8a16 | SA8255 (Proxy) | Qualcomm® SA8255P (Proxy) | QNN_CONTEXT_BINARY | 116.595 ms | 13 - 15 MB | NPU | Use Export Script |
unet | w8a16 | SA8650 (Proxy) | Qualcomm® SA8650P (Proxy) | QNN_CONTEXT_BINARY | 115.724 ms | 13 - 16 MB | NPU | Use Export Script |
unet | w8a16 | SA8775P ADP | Qualcomm® SA8775P | QNN_CONTEXT_BINARY | 107.956 ms | 6 - 13 MB | NPU | Use Export Script |
unet | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | QNN_CONTEXT_BINARY | 117.156 ms | 13 - 16 MB | NPU | Use Export Script |
unet | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | PRECOMPILED_QNN_ONNX | 116.818 ms | 0 - 883 MB | NPU | Use Export Script |
unet | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | QNN_CONTEXT_BINARY | 81.085 ms | 13 - 31 MB | NPU | Use Export Script |
unet | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | PRECOMPILED_QNN_ONNX | 84.025 ms | 13 - 32 MB | NPU | Use Export Script |
unet | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | QNN_CONTEXT_BINARY | 70.612 ms | 13 - 27 MB | NPU | Use Export Script |
unet | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | PRECOMPILED_QNN_ONNX | 70.807 ms | 13 - 28 MB | NPU | Use Export Script |
unet | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | QNN_CONTEXT_BINARY | 116.726 ms | 13 - 13 MB | NPU | Use Export Script |
unet | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | PRECOMPILED_QNN_ONNX | 117.502 ms | 829 - 829 MB | NPU | Use Export Script |
vae | w8a16 | QCS8550 (Proxy) | Qualcomm® QCS8550 (Proxy) | QNN_CONTEXT_BINARY | 268.758 ms | 0 - 3 MB | NPU | Use Export Script |
vae | w8a16 | QCS9075 (Proxy) | Qualcomm® QCS9075 (Proxy) | QNN_CONTEXT_BINARY | 248.983 ms | 0 - 10 MB | NPU | Use Export Script |
vae | w8a16 | SA8255 (Proxy) | Qualcomm® SA8255P (Proxy) | QNN_CONTEXT_BINARY | 272.989 ms | 0 - 2 MB | NPU | Use Export Script |
vae | w8a16 | SA8650 (Proxy) | Qualcomm® SA8650P (Proxy) | QNN_CONTEXT_BINARY | 284.628 ms | 0 - 2 MB | NPU | Use Export Script |
vae | w8a16 | SA8775P ADP | Qualcomm® SA8775P | QNN_CONTEXT_BINARY | 248.983 ms | 0 - 10 MB | NPU | Use Export Script |
vae | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | QNN_CONTEXT_BINARY | 270.831 ms | 0 - 3 MB | NPU | Use Export Script |
vae | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | PRECOMPILED_QNN_ONNX | 273.364 ms | 0 - 66 MB | NPU | Use Export Script |
vae | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | QNN_CONTEXT_BINARY | 205.993 ms | 0 - 18 MB | NPU | Use Export Script |
vae | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | PRECOMPILED_QNN_ONNX | 204.786 ms | 3 - 22 MB | NPU | Use Export Script |
vae | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | QNN_CONTEXT_BINARY | 194.607 ms | 0 - 14 MB | NPU | Use Export Script |
vae | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | PRECOMPILED_QNN_ONNX | 193.998 ms | 3 - 17 MB | NPU | Use Export Script |
vae | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | QNN_CONTEXT_BINARY | 266.935 ms | 0 - 0 MB | NPU | Use Export Script |
vae | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | PRECOMPILED_QNN_ONNX | 266.448 ms | 63 - 63 MB | NPU | Use Export Script |
controlnet | w8a16 | QCS8550 (Proxy) | Qualcomm® QCS8550 (Proxy) | QNN_CONTEXT_BINARY | 83.197 ms | 2 - 4 MB | NPU | Use Export Script |
controlnet | w8a16 | QCS9075 (Proxy) | Qualcomm® QCS9075 (Proxy) | QNN_CONTEXT_BINARY | 81.755 ms | 2 - 11 MB | NPU | Use Export Script |
controlnet | w8a16 | SA8255 (Proxy) | Qualcomm® SA8255P (Proxy) | QNN_CONTEXT_BINARY | 83.451 ms | 2 - 5 MB | NPU | Use Export Script |
controlnet | w8a16 | SA8650 (Proxy) | Qualcomm® SA8650P (Proxy) | QNN_CONTEXT_BINARY | 83.565 ms | 2 - 4 MB | NPU | Use Export Script |
controlnet | w8a16 | SA8775P ADP | Qualcomm® SA8775P | QNN_CONTEXT_BINARY | 81.755 ms | 2 - 11 MB | NPU | Use Export Script |
controlnet | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | QNN_CONTEXT_BINARY | 83.39 ms | 2 - 5 MB | NPU | Use Export Script |
controlnet | w8a16 | Samsung Galaxy S23 | Snapdragon® 8 Gen 2 Mobile | PRECOMPILED_QNN_ONNX | 86.158 ms | 0 - 384 MB | NPU | Use Export Script |
controlnet | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | QNN_CONTEXT_BINARY | 58.723 ms | 2 - 21 MB | NPU | Use Export Script |
controlnet | w8a16 | Samsung Galaxy S24 | Snapdragon® 8 Gen 3 Mobile | PRECOMPILED_QNN_ONNX | 59.623 ms | 32 - 50 MB | NPU | Use Export Script |
controlnet | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | QNN_CONTEXT_BINARY | 56.385 ms | 2 - 16 MB | NPU | Use Export Script |
controlnet | w8a16 | Snapdragon 8 Elite QRD | Snapdragon® 8 Elite Mobile | PRECOMPILED_QNN_ONNX | 57.339 ms | 31 - 45 MB | NPU | Use Export Script |
controlnet | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | QNN_CONTEXT_BINARY | 85.054 ms | 2 - 2 MB | NPU | Use Export Script |
controlnet | w8a16 | Snapdragon X Elite CRD | Snapdragon® X Elite | PRECOMPILED_QNN_ONNX | 80.108 ms | 351 - 351 MB | NPU | Use Export Script |
Installation
Install the package via pip:
pip install "qai-hub-models[controlnet-canny]"
Configure Qualcomm® AI Hub to run this model on a cloud-hosted device
Sign-in to Qualcomm® AI Hub with your
Qualcomm® ID. Once signed in navigate to Account -> Settings -> API Token
.
With this API token, you can configure your client to run models on the cloud hosted devices.
qai-hub configure --api_token API_TOKEN
Navigate to docs for more information.
Demo off target
The package contains a simple end-to-end demo that downloads pre-trained weights and runs this model on a sample input.
python -m qai_hub_models.models.controlnet_canny.demo
The above demo runs a reference implementation of pre-processing, model inference, and post processing.
NOTE: If you want running in a Jupyter Notebook or Google Colab like environment, please add the following to your cell (instead of the above).
%run -m qai_hub_models.models.controlnet_canny.demo
Run model on a cloud-hosted device
In addition to the demo, you can also run the model on a cloud-hosted Qualcomm® device. This script does the following:
- Performance check on-device on a cloud-hosted device
- Downloads compiled assets that can be deployed on-device for Android.
- Accuracy check between PyTorch and on-device outputs.
python -m qai_hub_models.models.controlnet_canny.export
Profiling Results
------------------------------------------------------------
text_encoder
Device : cs_8550 (ANDROID 12)
Runtime : QNN_CONTEXT_BINARY
Estimated inference time (ms) : 5.4
Estimated peak memory usage (MB): [0, 3]
Total # Ops : 438
Compute Unit(s) : npu (438 ops) gpu (0 ops) cpu (0 ops)
------------------------------------------------------------
unet
Device : cs_8550 (ANDROID 12)
Runtime : QNN_CONTEXT_BINARY
Estimated inference time (ms) : 110.9
Estimated peak memory usage (MB): [13, 15]
Total # Ops : 4055
Compute Unit(s) : npu (4055 ops) gpu (0 ops) cpu (0 ops)
------------------------------------------------------------
vae
Device : cs_8550 (ANDROID 12)
Runtime : QNN_CONTEXT_BINARY
Estimated inference time (ms) : 268.8
Estimated peak memory usage (MB): [0, 3]
Total # Ops : 175
Compute Unit(s) : npu (175 ops) gpu (0 ops) cpu (0 ops)
------------------------------------------------------------
controlnet
Device : cs_8550 (ANDROID 12)
Runtime : QNN_CONTEXT_BINARY
Estimated inference time (ms) : 83.2
Estimated peak memory usage (MB): [2, 4]
Total # Ops : 664
Compute Unit(s) : npu (664 ops) gpu (0 ops) cpu (0 ops)
Deploying compiled model to Android
The models can be deployed using multiple runtimes:
TensorFlow Lite (
.tflite
export): This tutorial provides a guide to deploy the .tflite model in an Android application.QNN (
.so
export ): This sample app provides instructions on how to use the.so
shared library in an Android application.
View on Qualcomm® AI Hub
Get more details on ControlNet-Canny's performance across various devices here. Explore all available models on Qualcomm® AI Hub
License
- The license for the original implementation of ControlNet-Canny can be found here.
- The license for the compiled assets for on-device deployment can be found here
